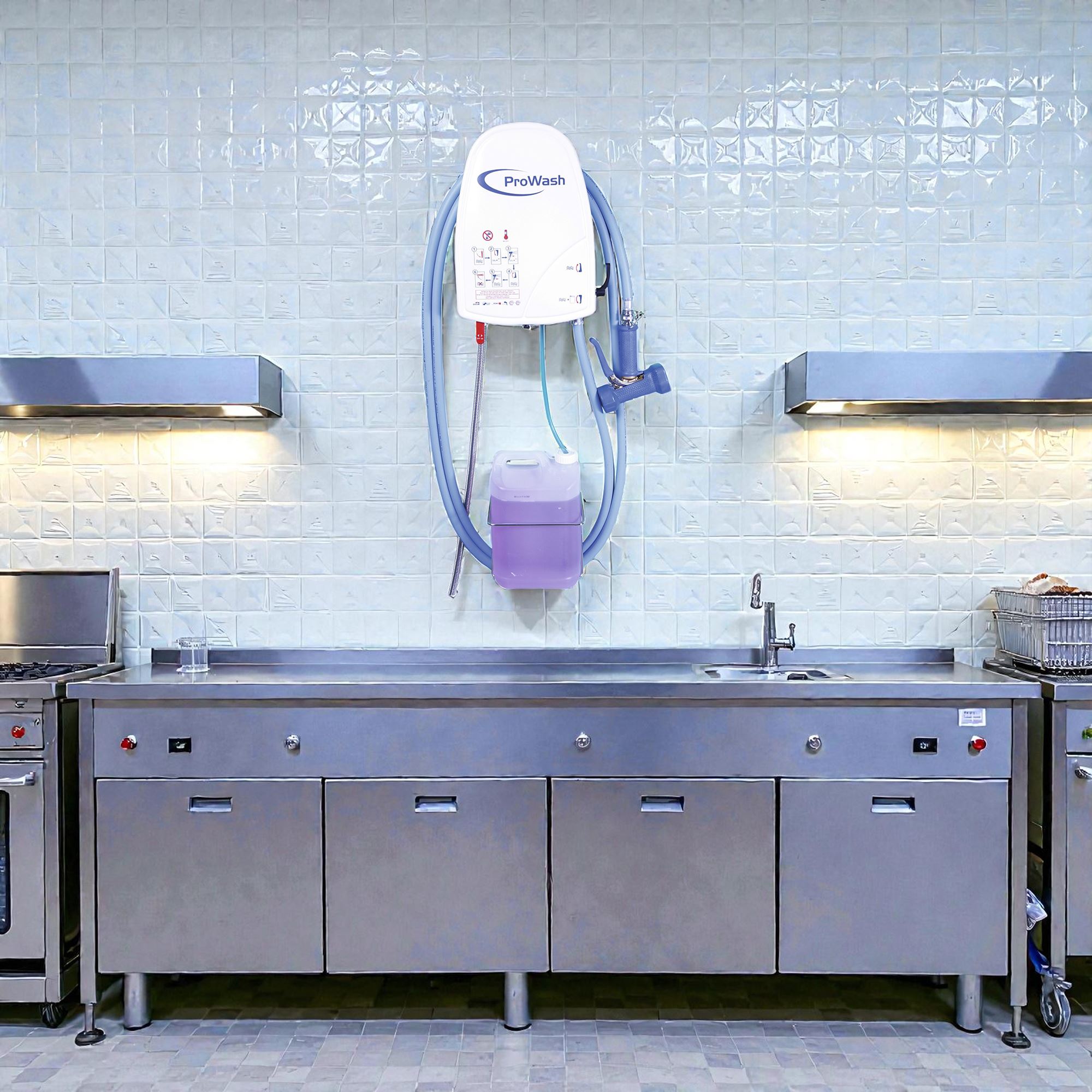

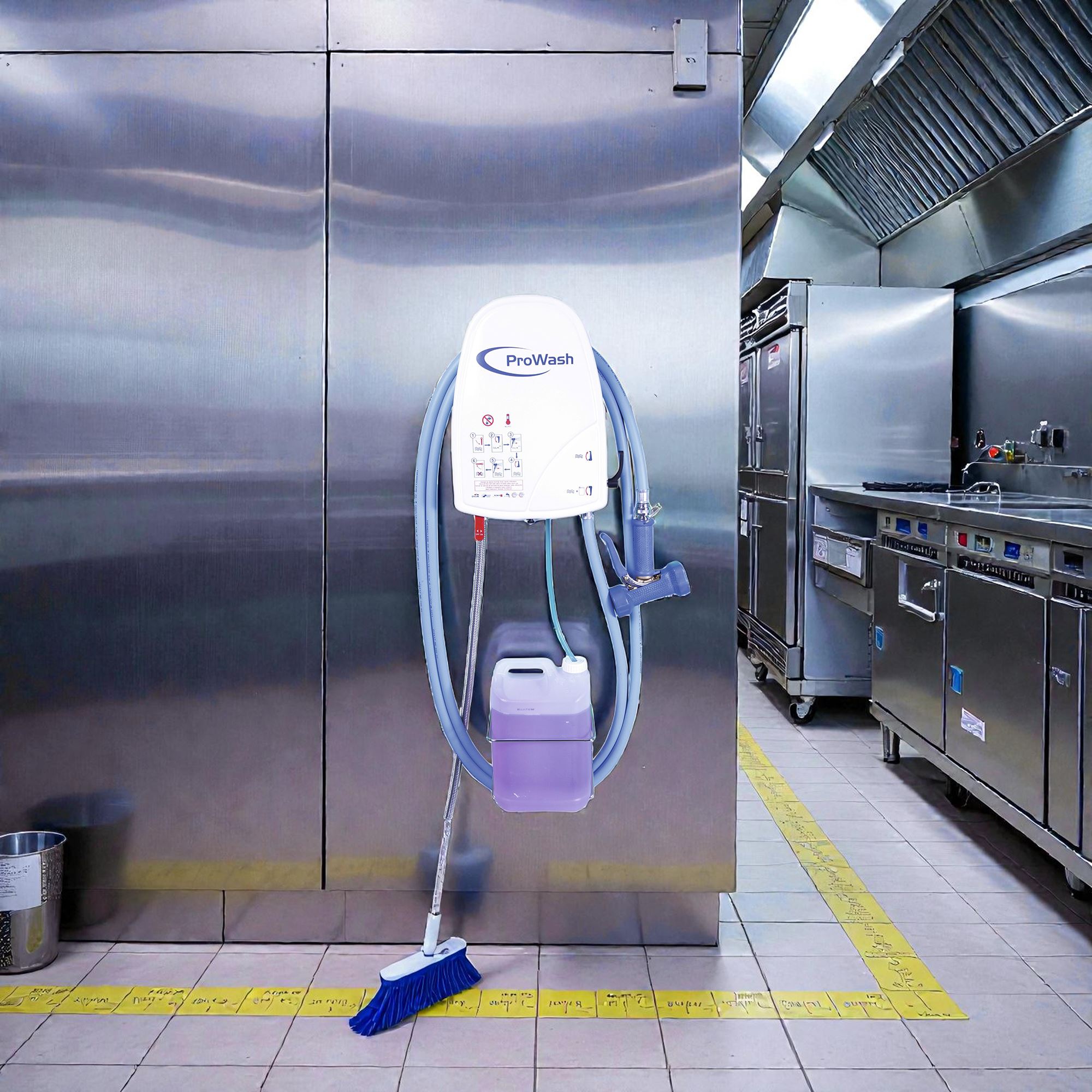

No power supply is required. The unit is attached to the wall using dowels and screws.

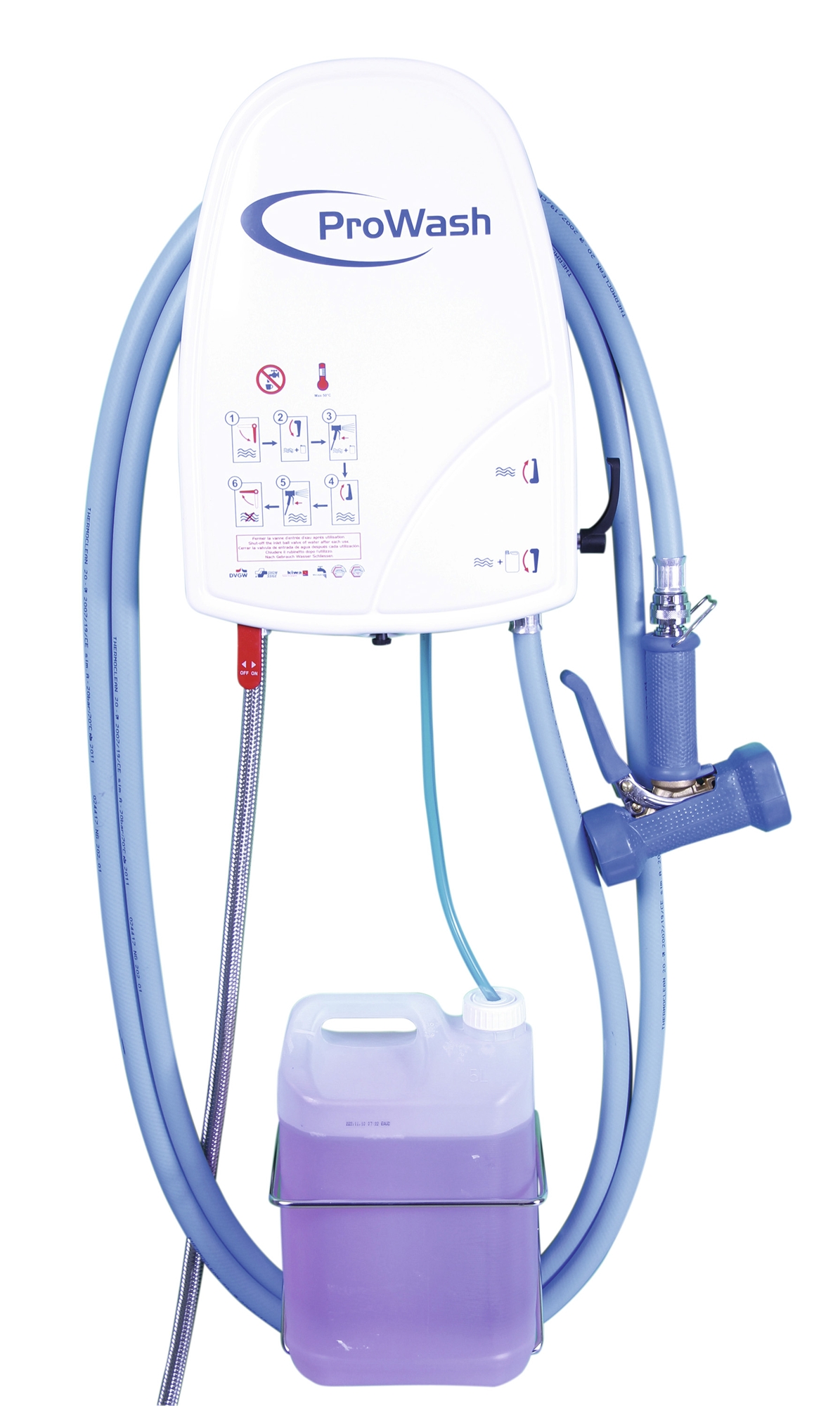

Central unit delivered with a complete connection kit, 1 5 litre can holder and an anti-shock gun.
Food grade reinforced blue hose, resistant to 70°C and 20 bars , length 15 m .
A cleaning system will allow you to meet hygiene and cleaning requirements, particularly in compliance with HACCP standards. Installing a system is quick and easy if you have a 21/27 screw-in water supply.
The proposed model is a cleaning and disinfection unit for 1 product in a 5-litre can (can holder provided)
Excellent resistance to detergents from the valve, nozzles and plastic injector.
Filter anti-pollution valve.
Gun with high shock protection, resistant to 80°C and 25 bars.
Central unit certified and approved by ACS (France), DVGW (Germany), SVGW (Switzerland), BELGAQUA (Belgium), and KIWA (Holland). Wall mounting with three screws.
Connection to standard water supply in 21/27.
Screen printing possible for your establishment (depending on quantity).
Features of the cleaning and disinfection unit
8 Non-deformable and easy-to-clean PVC shell
8 Wash pipe support integrated into the frame
8 Venturi injector in PP compatible with the majority of chemical products, easily removable
8 Easily removable check valve, ceramic ball, Hastelloy® spring and EPDM O-ring (FPM on request)
8 Stainless steel flexible hose resistant to 110°C - 18 bar
8 Integrated anti-pollution valve type CA (NF double flap valve AR on request)
8 Product suction line(s) in Tubclair® tubing (Tygon® tubing on request)
8 Dilution ratio from 0.5 to 11% Working pressure: 2 to 6 bar Working temperature: 50°C maximum
8 Universal pictograms for use and safety
8 ACSE certified device according to EN1717 directive, if CA valve.
Important:
The units are supplied with a non-return valve with EPDM seal (ref: LB000113) for basic products. For use with acidic products, it is necessary to replace the valve with a model with a more resistant FPM seal (ref: LB000112).
Use of a chemical product with a PH ranging from 1 to 6 (ACID) = equipped with a YELLOW valve (FPM seal).
Use of a chemical product with a PH ranging from 7 to 14 (ALKALINE) must be equipped with a BLACK valve (EPDM seal).
Benefits:
8 Operation without power supply or compressed air
8 Direct connection to a water supply tap
8 Reduced maintenance costs thanks to rapid, tool-free replacement of wear parts (Venturi injector, rear valve(s))
8 Guarantee of correct dilution and controlled consumption of chemical products
