Food grade reinforced blue hose, resistant to 70°C and 20 bars, length 10 m. Designed for intensive cleaning of all professional premises: kitchens, food preparation and storage areas, sanitary facilities, etc.

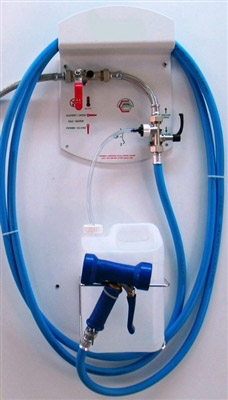

Cleaning and disinfection unit for 1 product. Unit comes with a complete connection kit, 1 5-liter can holder, and a shock-resistant gun.
Functions
- Dilution, spraying and rinsing
- Mixes the chemical with water using a Venturi system
- Concentration adjustment by color-calibrated nozzles
Technical Characteristics
'PVC plate with integrated washing hose support
'PP Venturi injector compatible with most chemicals, easily removable
'Easily removable check valve, ceramic ball, Hastelloy® spring and EPDM O-ring (FPM on request)
'Stainless steel hose resistant to 110°C - 18 bar
' Integrated anti-pollution valve type CA (Double check valve NF AR on request)
' Product suction line(s) in Tubclair® tubing (Tygon® tubing on request)
'Dilution ratio of 0.5 to 11%
Working pressure: 2 to 6 bar
Water temperature: 50°C maximum
'Universal pictograms for use and safety
' ACSE certified device according to directive EN1717, if CA valve
Pipe
- Thermoclean AL 20® food-safe wash hose, 5-layer construction with polyester fiber for longer life, non-marking, grease-resistant blue PVC outer layer
- Resists 70°C under 20 bar
- Equipped with a 6-ball stainless steel quick coupler.
Available in several lengths to choose from: 10, 15, 20 or 25 linear meters.
Gun
- Ergonomic plastic anti-shock gun with adjustable jet by wheel, light and resistant for intensive use, PP body reinforced with fiberglass, soft plastic anti-shock protection, inlet connection, axis and spring in stainless steel - EPDM seals. Resists 50°C - 12 bar
- Shockproof brass gun with adjustable jet equipped with a quick coupler tip, solid brass body entirely covered with food-grade rubber, anti-scald tab, stainless steel spring and stainless steel shaft with double O-ring, reinforced stainless steel plunger and nickel-plated outlet. Resists 95° - 24 bar.
Important:
The units are supplied as standard with a non-return valve with EPDM seal (ref: LB000113) for basic products. For use with acidic products , it is necessary to replace the valve with a model with a more resistant FPM seal (ref: LB000112).
Use of a chemical product with a PH ranging from 1 to 6 (ACID) = equipped with a YELLOW valve (FPM seal).
Use of a chemical product with a PH ranging from 7 to 14 (ALKALINE) must be equipped with a BLACK valve (EPDM seal).
Benefits:
' Operation without power supply or compressed air
'Direct connection to a water supply tap
'Reduced maintenance costs thanks to rapid, tool-free replacement of wear parts (Venturi injector, rear valve(s))
'Guarantee of correct dilution and controlled consumption of chemical products
Installation kit included
- 1 equipped washing hose,
- 1 equipped spray gun,
- 1 or 2 can holder(s),
- 1 stainless steel connection hose,
- 1 connection kit,
- 1 kit of screws and seals,
- Calibration nozzles (bag of 14),
- 1 technical notice.
