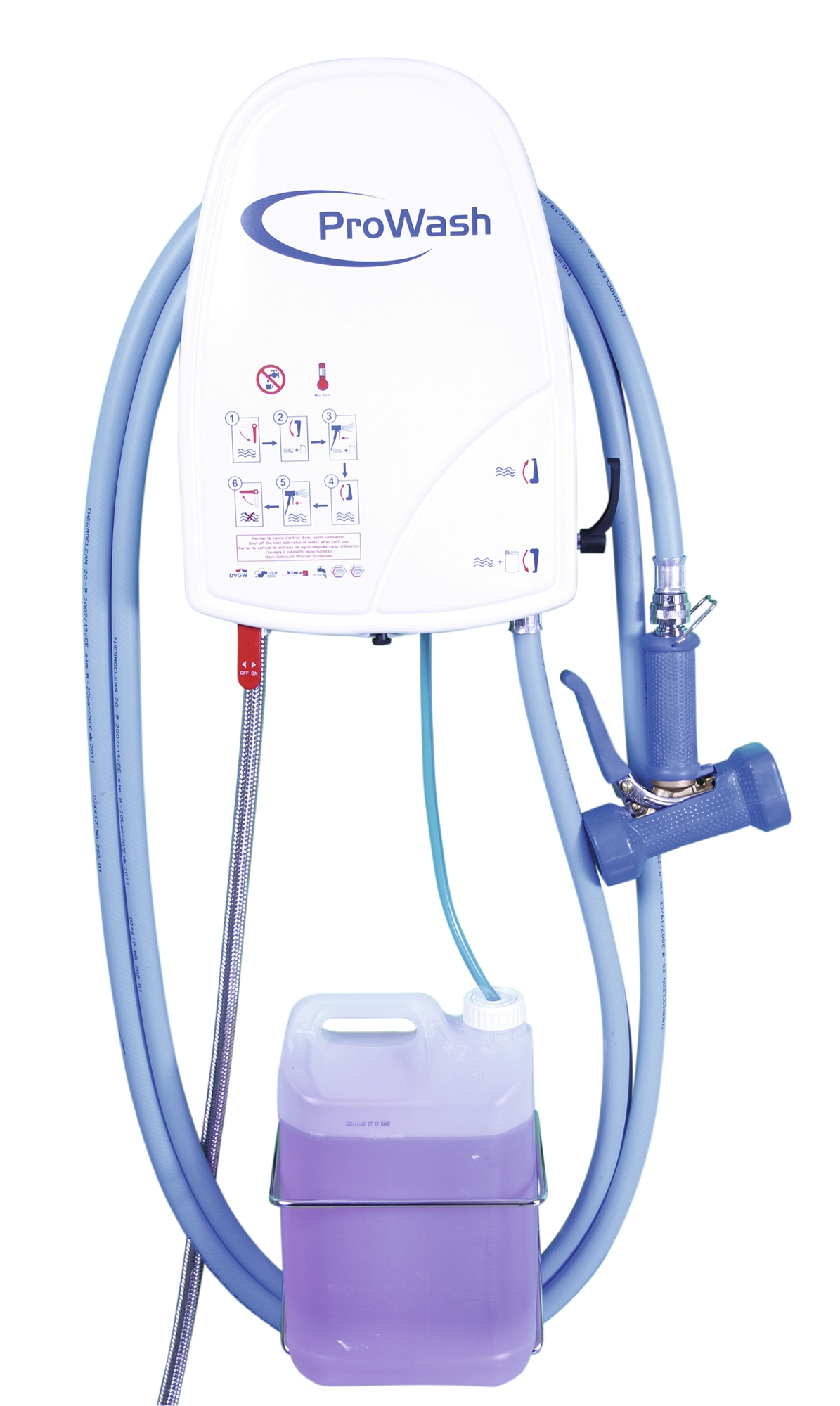

Central cleaning disinfection product 1 20 m 5 L tin

Cleaning and disinfection center for 1 product.
Central unit delivered with a complete connection kit, 1 5 liter canister support and an anti-shock gun.
Food grade reinforced blue hose, resistant to 70°C and 20 bars, length 20 m.
Excellent resistance to detergent products from the valve, nozzles and plastic injector.
Filtering anti-pollution valve.
Gun with high anti-shock protection, resistant to 80°C and 25 bars.
Certified and approved plant ACS (France) DVGW (Germany) SVGW (Switzerland) BELGAQUA (Belgium) KIWA (Holland). Wall mounting with three screws.
Connection to standard water inlet in 21/27.
Screen printing possible for your establishment (depending on quantity).

Technical characteristics

8 PVC shell non-deformable and easily cleanable
8 Washing pipe support integrated into the framework
8 Venturi injector in PP compatible with the majority of chemical products, easily removable
8 Easily removable check valve, ceramic ball, Hastelloy® spring and EPDM O-ring (FPM on request)
8 Stainless steel hose resistant to 110°C - 18 bar
8 Integrated anti-pollution valve type CA (NF double valve AR valve on request)
8 Product suction line(s) in Tubclair® pipe (Tygon® pipe on request)
8 Dilution ratio from 0.5 to 11% Working pressure: 2 to 6 bar Working temperature: 50°C maximum
8 Universal use and safety pictograms
8 ACSE certified device according to EN1717 directive, if CA valve.

Important:
The units are delivered as standard with a non-return valve with EPDM seal (ref: LB000113) for basic products. For use with acidic products , it is necessary to replace the valve with a model with a more resistant FPM seal (ref: LB000112).

Use of a chemical product with a PH ranging from 1 to 6 (ACID) = equipped with a YELLOW valve (FPM seal).
Use of a chemical product with a PH ranging from 7 to 14 (ALKALINE) must be equipped with a BLACK valve (EPDM seal).

Benefits:

8 Operation without electrical power or compressed air
8 Direct connection to a water supply tap
8 Reduction in maintenance costs thanks to rapid, tool-free replacement of wearing parts (Venturi injector, rear valve(s))
8 Guarantee of fair dilution and controlled consumption of chemicals
