Designed for intensive cleaning of all professional premises: kitchens, food preparation and storage areas, sanitary facilities, etc.
Cleaning and disinfection center for 1 product.

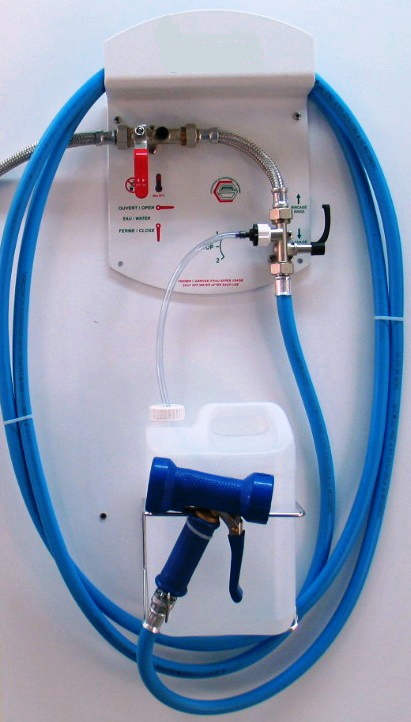

Central unit delivered with a complete connection kit, 1 5 litre can holder and an anti-shock gun.
Food grade reinforced blue hose, resistant to 70°C and 20 bars, length 25 m.
Functions
- Dilution, spraying and rinsing
- Mixes the chemical with water using a Venturi system
- Concentration adjustment by color-calibrated nozzles
Features of the cleaning and disinfection unit
'PVC plate with integrated washing hose support
'PP Venturi injector compatible with most chemicals, easily removable
'Easily removable check valve, ceramic ball, Hastelloy® spring and EPDM O-ring (FPM on request)
'Stainless steel hose resistant to 110°C - 18 bar
' Integrated anti-pollution valve type CA (NF double flap valve AR on request)
' Product suction line(s) in Tubclair® tubing (Tygon® tubing on request)
'Dilution ratio of 0.5 to 11%
Working pressure: 2 to 6 bar
Water temperature: 50°C maximum
'Universal pictograms for use and safety
' ACSE certified device according to directive EN1717, if CA valve
Pipe
- Thermoclean AL 20® food-safe wash hose, 5-layer construction with polyester fiber for longer life, non-marking, grease-resistant blue PVC outer layer
- Resists 70°C under 20 bar
- Equipped with a 6-ball stainless steel quick coupler.
Available in several lengths to choose from: 10, 15, 20 or 25 linear meters.
Gun
- Ergonomic plastic anti-shock gun with adjustable jet by wheel, light and resistant for intensive use, PP body reinforced with fiberglass, soft plastic anti-shock protection, inlet connection, axis and spring in stainless steel - EPDM seals. Resists 50°C - 12 bar
- Shockproof brass gun with adjustable jet equipped with a quick coupler tip, solid brass body entirely covered with food-grade rubber, anti-scald tab, stainless steel spring and stainless steel shaft with double O-ring, reinforced stainless steel plunger and nickel-plated outlet. Resists 95° - 24 bar.
Important:
The units are supplied as standard with a non-return valve with EPDM seal (ref: LB000113) for basic products. For use with acidic products , it is necessary to replace the valve with a model with a more resistant FPM seal (ref: LB000112).
Use of a chemical product with a PH ranging from 1 to 6 (ACID) = equipped with a YELLOW valve (FPM seal).
Use of a chemical product with a PH ranging from 7 to 14 (ALKALINE) must be equipped with a BLACK valve (EPDM seal).
Benefits:
' Operation without power supply or compressed air
'Direct connection to a water supply tap
'Reduced maintenance costs thanks to rapid, tool-free replacement of wear parts (Venturi injector, rear valve(s))
'Guarantee of correct dilution and controlled consumption of chemical products
Installation kit included
- 1 equipped washing hose,
- 1 equipped spray gun,
- 1 or 2 can holder(s),
- 1 stainless steel connection hose,
- 1 connection kit,
- 1 kit of screws and seals,
- Calibration nozzles (bag of 14),
- 1 technical notice.
