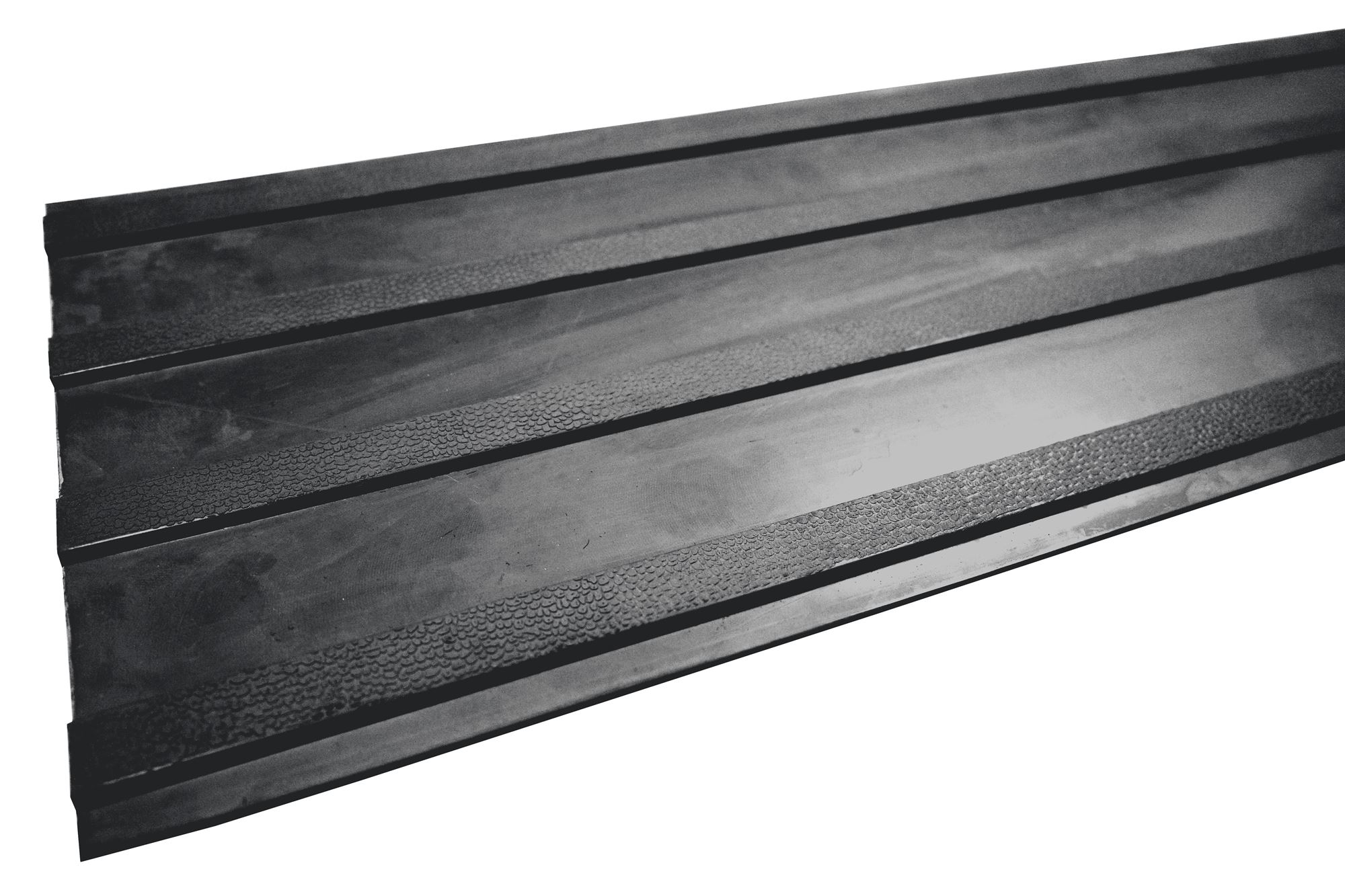

5mm orientation aid band

Guidance help band

Ref.. 221005N

The orientation aid strip is non-slip and complies with the NFP 98-351 standard. Thanks to the contrast in texture and color of the orientation aid strip, the visually impaired person can detect the change in relief with their cane or sole.

Read more
Tapis pro
5mm orientation aid band
5mm orientation aid band 5mm orientation aid band 5mm orientation aid band 5mm orientation aid band 5mm orientation aid band 5mm orientation aid band
17,72€ HT
Add to cart
35 Unit in stock
Product in stock for the quantity indicated in the article.
Quantity available In stock (5) Packaging Sales unit
35 Unit
By Unit 1 unit

All about 5mm orientation aid band

Description

Our rubber guidance strips can be installed on roads, in public spaces, or even in your car parks. They comply with standard NF P 98-352.
8mm guidance strip. This strip should be placed on roads or in public spaces away from hazardous situations (oblique pedestrian crossings, complex intersections, roundabouts, obstacles, dangers, etc.).
Compliant with European fire standard Cfl-S1

Advantages of the orientation and guidance strip:

- A discreet and effective marker that indicates the direction to follow.
- Reassures visually impaired and blind people.
- Non-slip
- Compliant with standard NFP 98-351
- Outdoor installation

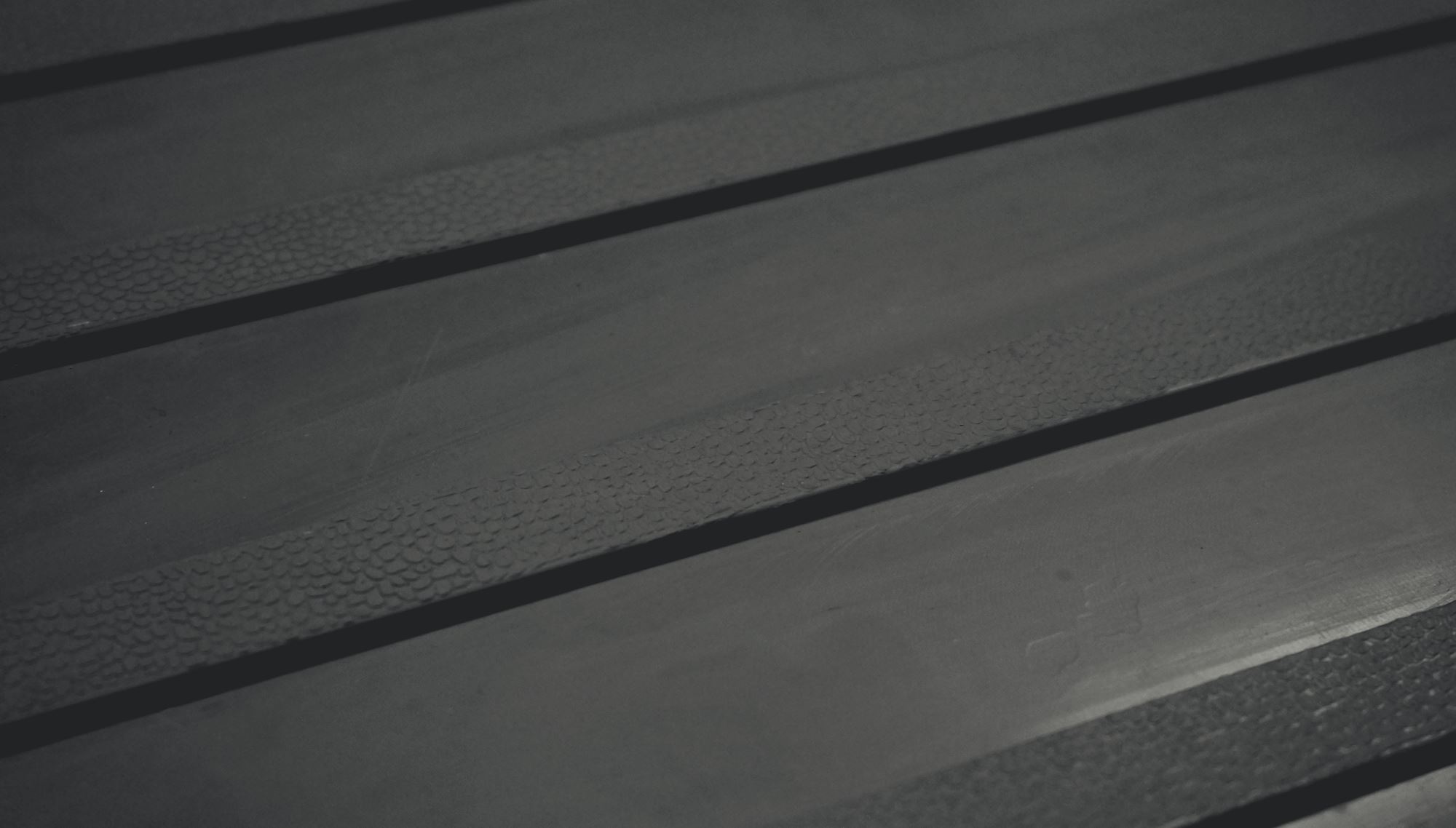

- Thanks to the contrast in texture and color, the visually impaired person can detect the change in relief with their cane or directly under their sole.

Installation method:

Degrease the underside and roughen it by sanding. It is then fully bonded with two-component polyurethane adhesive.

Technical specifications:

- Outdoor installation
- Washable with a water jet
- Exposure down to -40°C
- UV resistant
- Suitable for public spaces

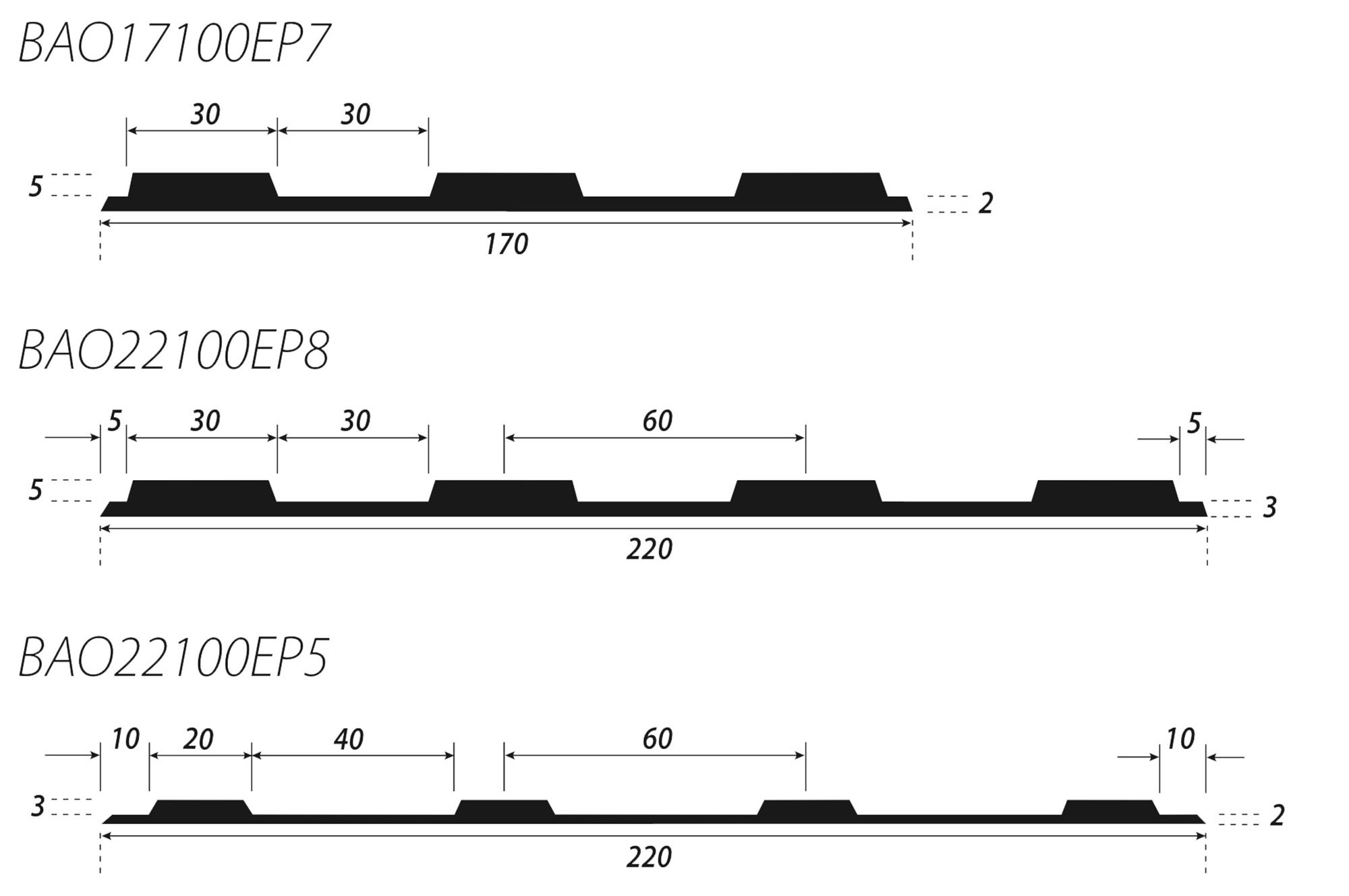

- Dimensions 220 x 1000 mm
- Thickness 5mm
- 3-5 (single rail installation)

Characteristics
Native country
INin INDIA
Reference
221005N
Brand
Tapis pro
See other products by this brand
Sales unit
1 unit By Unit
Barcode:
3700023637548
Weight (3)
1,00 Kg (3)
Manufacturer Warranty
NON CONCERNE
Similar products
See product similar to :
5mm orientation aid band
Size of the package (4)
Length : 100,00cmWidth : 22,00cmHeight : 0,50cm
Quantity available (2)
35 Unit
Customs Code
4016910000
UN code
No recommendation
