Ideal for the metal machining and cutting industries. It will extract cutting oils and chips from machining, tapping, drilling, etc., operations carried out in the metal construction industry.

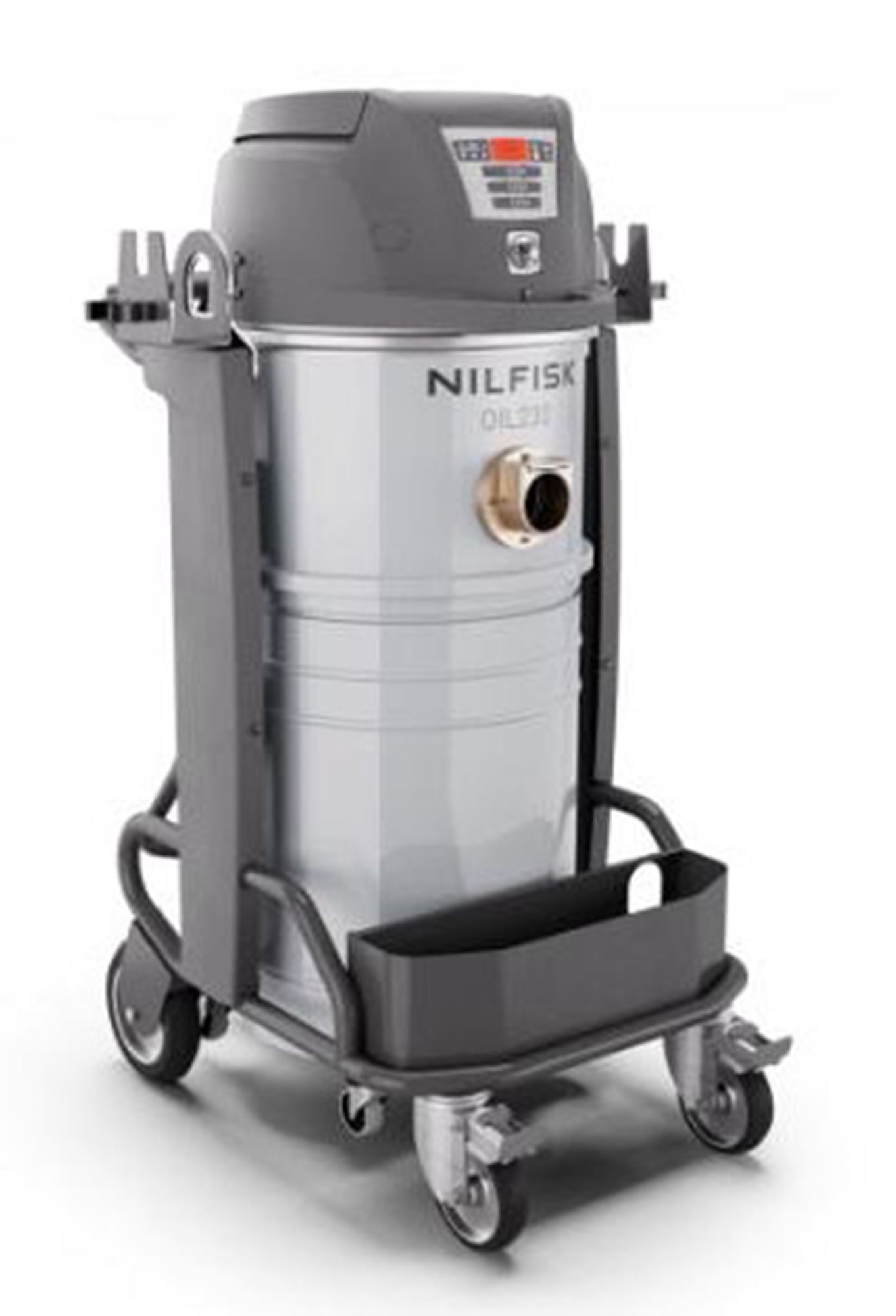

The Nilfisk OIL230 industrial vacuum cleaner is designed for simultaneous suction and drainage , enabling continuous cleaning of machine tools, sumps, and retention tanks while significantly reducing downtime. Robust, mobile, and ergonomic, the OIL230 improves operator safety and optimizes the recovery and recycling of liquids such as lubricants, coolants, and shavings.
Advantages of the Nilfisk OIL230 vacuum cleaner:
- Complete cycle without interruption : continuous suction, chip separation, draining and reinjection of liquids
- Increased productivity : operation possible by a single operator, without disassembly or disconnection
- Optimized recovery and recycling : reduced lubricant waste and lower operating costs
- High-performance suction : 3 bypass motors offering a combined power of 3,200 W
- Robust and secure design : low center of gravity for excellent stability and safe handling
- Simplified maintenance : quick access to components, easier servicing
- Mobility and ergonomics : compact size, chip basket at waist height, integrated accessory storage
Technical specifications of the OIL230 industrial vacuum cleaner:
- Power supply: 220–240 V / 50–60 Hz
- Rated power: 3.2 kW
- Number of motors: 3 bypass motors
- Noise level: 72 dB(A)
- Maximum airflow: 535 m³/h
- Maximum pressure drop: 210 mbar
- Liquid tank capacity: 70 liters
- Chip basket capacity: 27 liters
- Tank inlet diameter: 70 mm
- Protection: Class I – IP44
- Dimensions (L × W × H): 806 × 624 × 1447 mm
- Weight (machine only): 69 kg
Standard equipment of the OIL230 vacuum cleaner:
Included: chip basket, automatic liquid shut-off, oleophobic oil mist filter, lifting hooks, hose clamps. Gravity draining.
Optional accessories:
Special oil accessory kit:
- Machine cleaning kit, 50 mm diameter, ref: Z7 24156
- Floor and machine cleaning kit, 50 mm diameter, ref: 4072400195
Lance Plate:
- Flexible flat lance, 50 mm diameter, conductive, ref: 4072100240
Connection:
- Complete 50mm diameter connection joint, ref: 4072200890
Recycling bin:
- Collection tray to be placed under the filter chamber ref: 4081801764
Accessory basket kit:
- Accessory basket kit for OIL230 ref: 4089101315
Solid stop kit:
- Solid galvanized steel stop kit ref: 4089101350
- Solid stainless steel stop kit ref: 4089101351
Nilfisk France National After-Sales Service
Nilfisk after-sales service provided by more than 90 mobile technicians.
The technicians will travel to your site upon your request.
Services provided:
-Advice -Diagnostics -Troubleshooting -Service Package -Service Contract -Full Contract -Parts and Accessories
