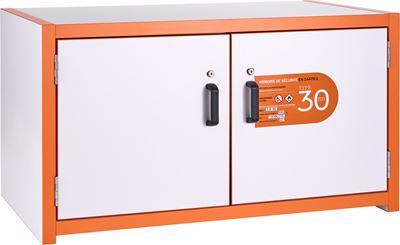

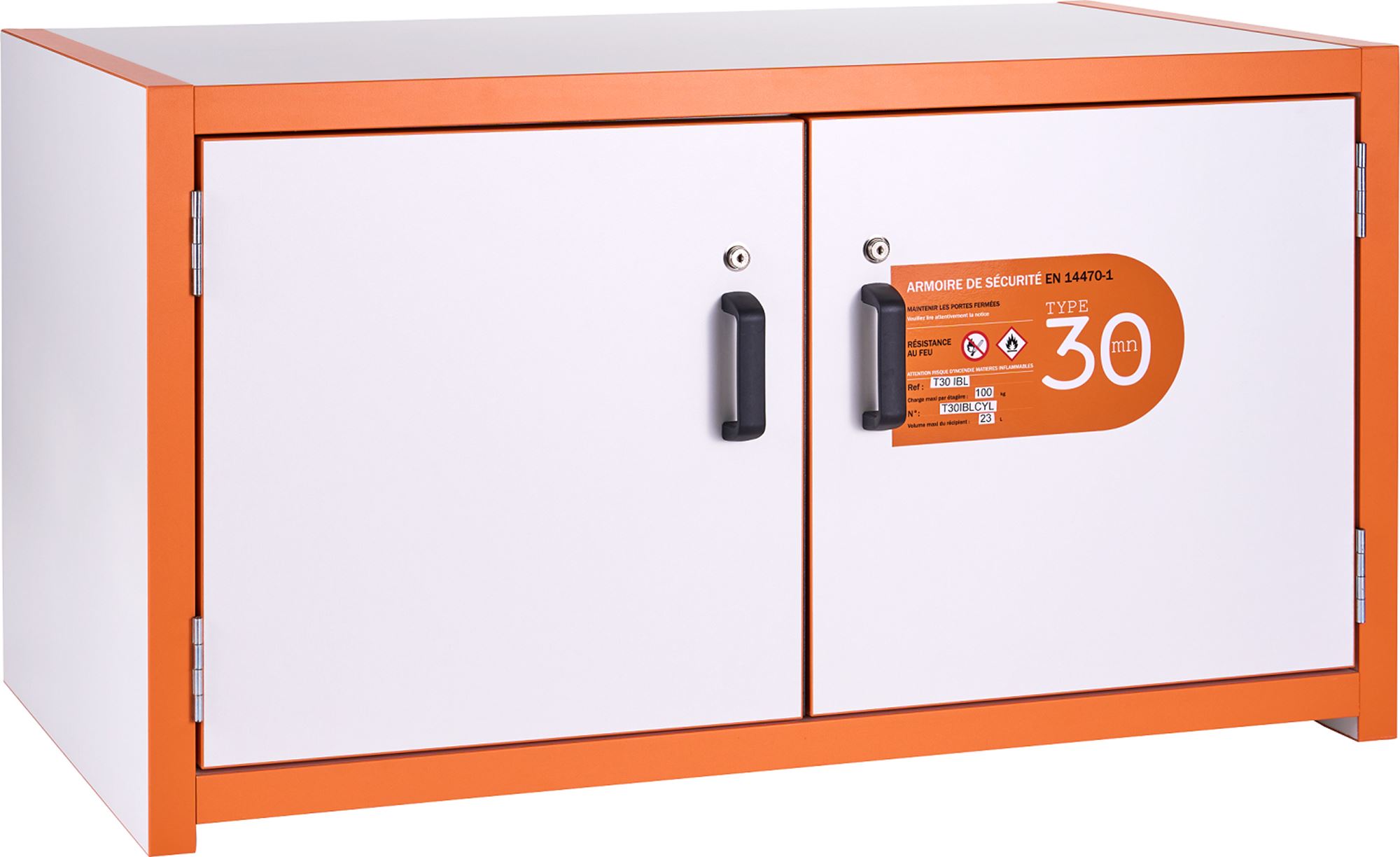

Small T30 IBL Voussert safety cabinet with 2 doors. Made in France, it is designed for the safe storage of hazardous products, in accordance with standard NF EN 14470-1 1.
Ideal for safely storing small quantities of flammable products.
Technical description
This cabinet has the following physical and technical characteristics:
Construction : It is made of high-pressure laminate (HPL) with a white body and an orange trim.
Dimensions and capacity: Its external dimensions are 600 x 11000 x 595 mm (H x W x D) for a weight of 99 kg.
It offers a retention capacity of 25 L and a recommended storage volume of 60 L.

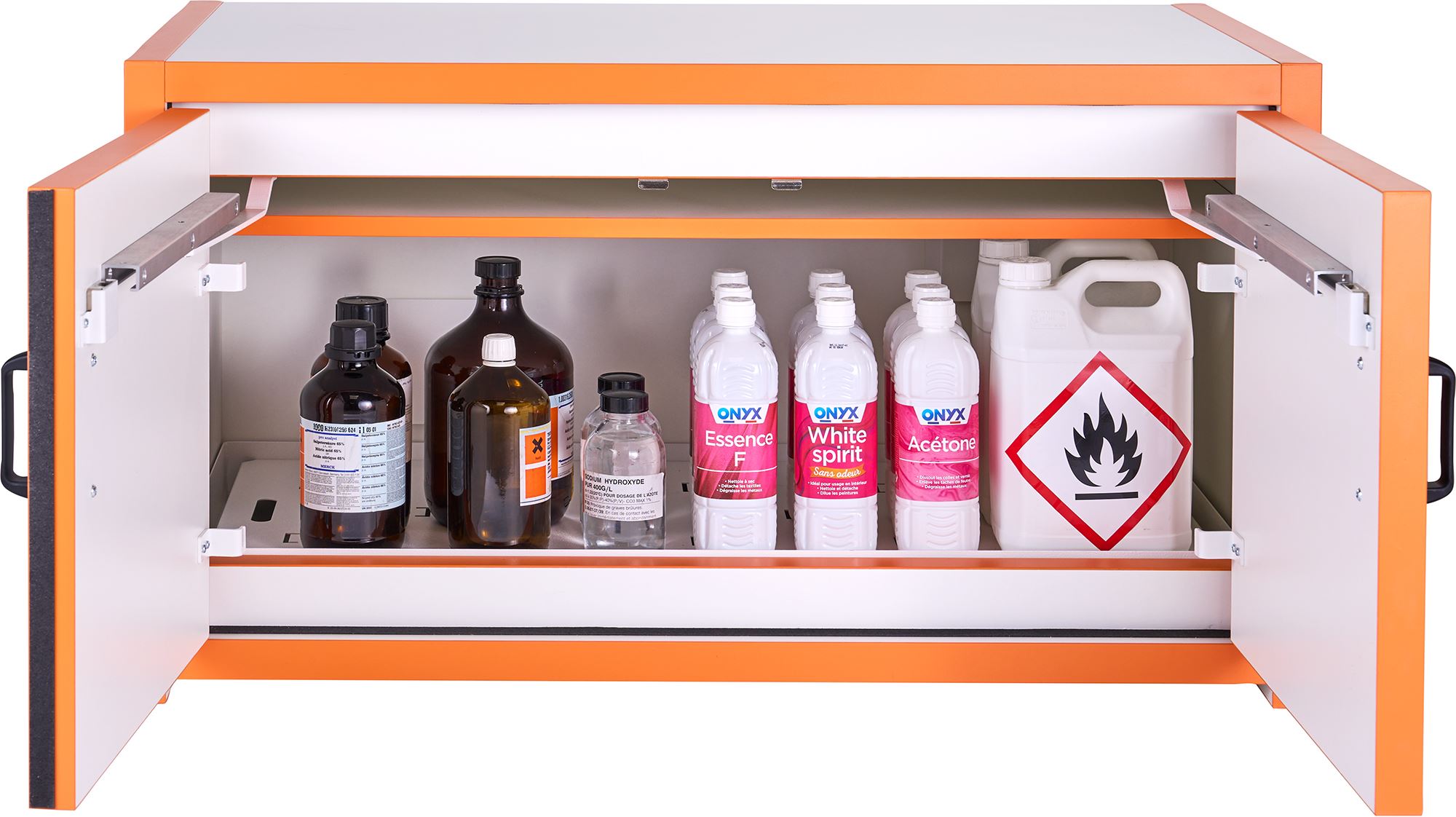

Included equipment : It includes a containment tray topped with a perforated painted steel work surface, allowing the space above the tray to be used for additional storage.
Installation: It is equipped with adjustable feet allowing for precise leveling during installation. 2.
Advantages and safety features
The T30 IBE Voussert cabinet offers several major advantages for the protection of users and premises:
Active fire protection: The door is equipped with a hold-open system which closes automatically thanks to a thermal fuse as soon as the temperature exceeds 50°C.
Safe ventilation : The ventilation outlets (80 mm diameter, roof connection) have an automatic shut-off device in case of fire.
Electrical safety and access : It incorporates an earthing screw to prevent electrostatic risks and a key locking system to secure access to stored products.
Purification options: For increased safety, it is possible to add as an option a filtration box (with ERLAB filter included) or a mechanical ventilation box displaying a flow rate of 75 m³/hour.
Summary of technical specifications
* External dimensions: H x W x D: 600 x 1100 x 595 mm
* 1 spill containment tray
* Retention tray capacity: 26 L
* Recommended storage volume: 60 L
* Weight: 75 kg
Advantages of high-pressure laminate (HPL)
The T30 IBE CYL security cabinet is constructed from high-pressure laminate (HPL). The choice of this material is one of the key reasons for selecting this specific cabinet model.
High-pressure laminate (HPL) is a material commonly used in laboratory and security environments for the following reasons:
• Chemical resistance: It offers excellent protection against splashes of solvents and corrosive products.
• Durability: It is an extremely robust material, resistant to shocks, scratches and daily wear and tear.
• Easy maintenance: Its non-porous surface facilitates decontamination and cleaning.
• Thermal stability: It retains its properties even in the event of temperature variations, which is consistent with the use of a fire safety cabinet.
