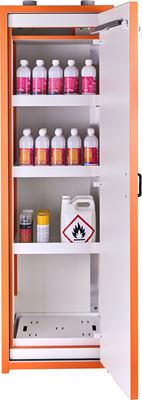

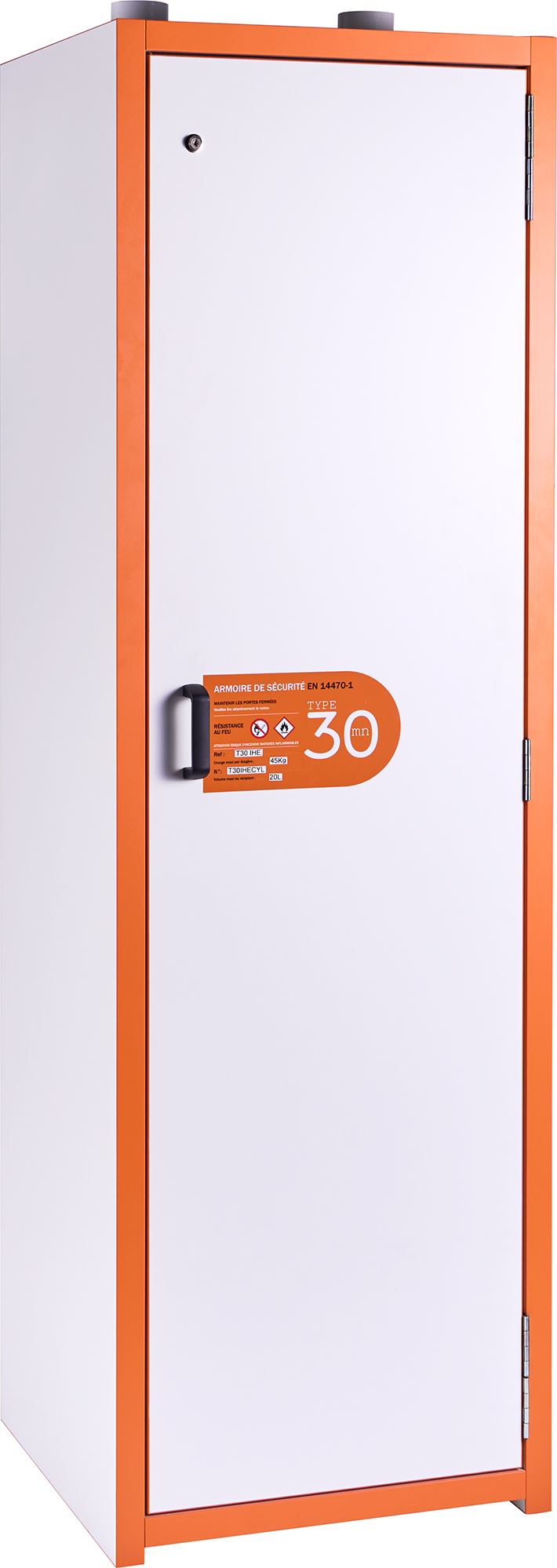

High flammable product cabinet, 1 door

1-door flammable product safety cabinet dedicated to storage in businesses or communities.
The T30 IHL CYL safety cabinet is a storage solution designed specifically for flammable products, combining robustness and strict compliance with NF EN 14470-1 safety standards.

Technical description of the T30IHE Voussert cabinet

This two-door wardrobe has the following features:
Dimensions and capacity: It measures 1950 mm in height and 600 mm in width. It offers a recommended storage volume of 120 L and can support a load of 45 kg per shelf.
Its structure is made of high-pressure laminate (HPL) with a white body.
It rests on adjustable feet for perfect leveling and has a removable base for easy handling.

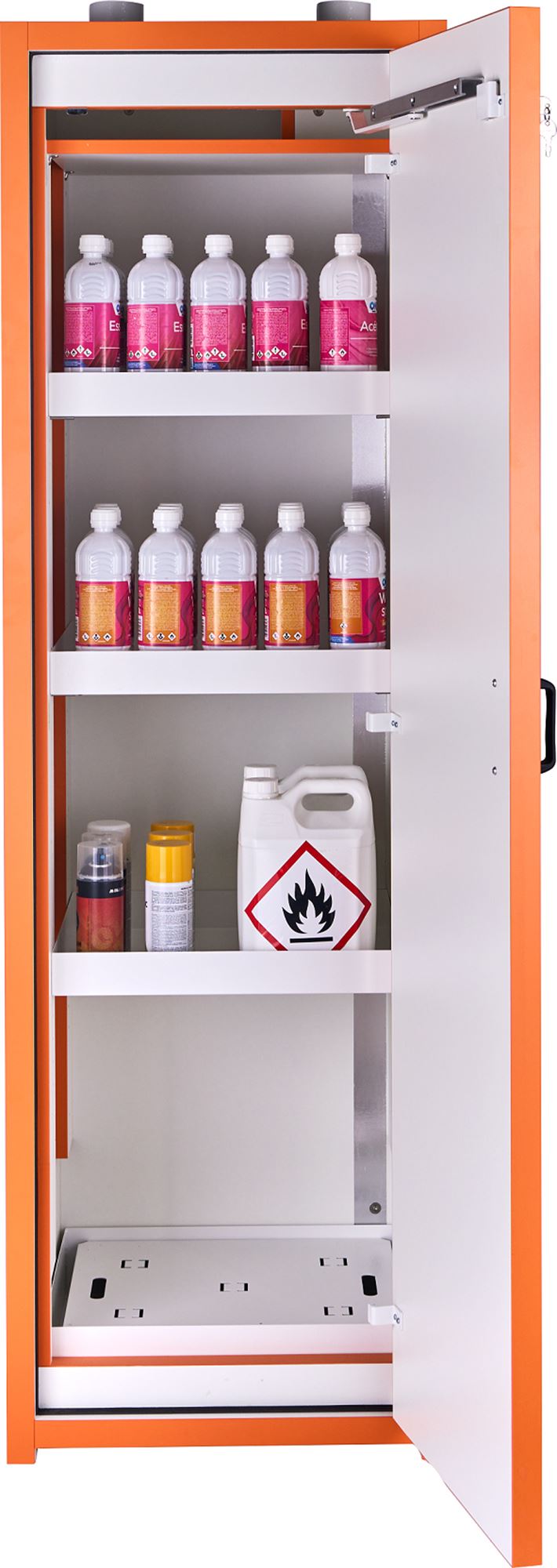

Interior layout : It is equipped with 3 height-adjustable shelves (in 32 mm increments) and a 42 L capacity spill containment tray.
Fire safety : The ventilation outlets (Ø 80 mm) and the doors are equipped with an automatic shut-off and closing system triggered by a thermal fuse as soon as the temperature reaches = 50°C.
Summary of main features
* External dimensions: H x W x D: 1950 x 600 x 595 mm
* 3 shelves
* Permissible load evenly distributed per shelf: 45 kg
* 1 spill containment tray
* Retention tray capacity: 28 L
* Recommended storage volume: 120 L
* Weight: 155 kg

Advantages of the T30 IHE flammable product safety cabinet

Choosing this model offers several major benefits:
Compliance and Quality: The cabinet complies with the NF EN 14470-1 standard and is made in France.
Storage optimization: The presence of a perforated grating or placement surface on the retention tray allows additional products to be stored directly on the retention area.
Enhanced security: It incorporates a key lock to limit access and an earthing screw to prevent electrostatic risks.
Modularity and options: For better management of emissions, it is possible to add as an option a mechanical ventilation unit (75 m3/hour) or a filtration unit with included ERLAB filter.
The doors are equipped with a hold-open system, facilitating the loading and unloading of products before any fire alarm.

What filtration and ventilation options are available?

For the T30 IHL Voussert safety cabinet, the available filtration and ventilation options are as follows:
• Filtration unit: A filtration module is offered with an ERLAB filter included.
• Mechanical ventilation unit: A motorized ventilation system is available, offering a flow rate of 75 m³/hour.
In addition to these options, the cabinet comes standard with 80 mm diameter ventilation grilles with a pre-installed roof connection. These grilles are equipped with an automatic shut-off device that activates in case of fire to ensure the structure remains airtight.

How do I install the filtration unit on the roof?

To install the filtration unit (optional with ERLAB filter) on the Voussert T30 IHL cabinet, you must use the connection points provided for this purpose on the structure:
• Connection point: The installation is done directly on the roof of the cabinet, where the ventilation outlets are located.
• Compatibility: The box must be connected to ventilation outlets which have a diameter of 80 mm (Ø 80 mm).
• Integrated safety: These ventilation outlets are already equipped with an automatic shut-off device that activates in case of fire to isolate the cabinet

What are the advantages of an ERLAB filter?

• Simplified integration: The ERLAB filter has the advantage of being directly included when purchasing the optional filtration box.
• Certified compatibility: This is an option specifically designed to work with the T30 IHL cabinet structure, ensuring compatibility with the equipment's ventilation system.
• Emission management: As mentioned in our conversation history, this type of filter is used to treat vapors and emissions from chemicals stored inside the cabinet.
In general, ERLAB filters are renowned for their high adsorption capacity and their filtration technology without external connection, which allows the cabinet to be installed in premises without a centralized extraction system while protecting the user against the inhalation of toxic fumes.
