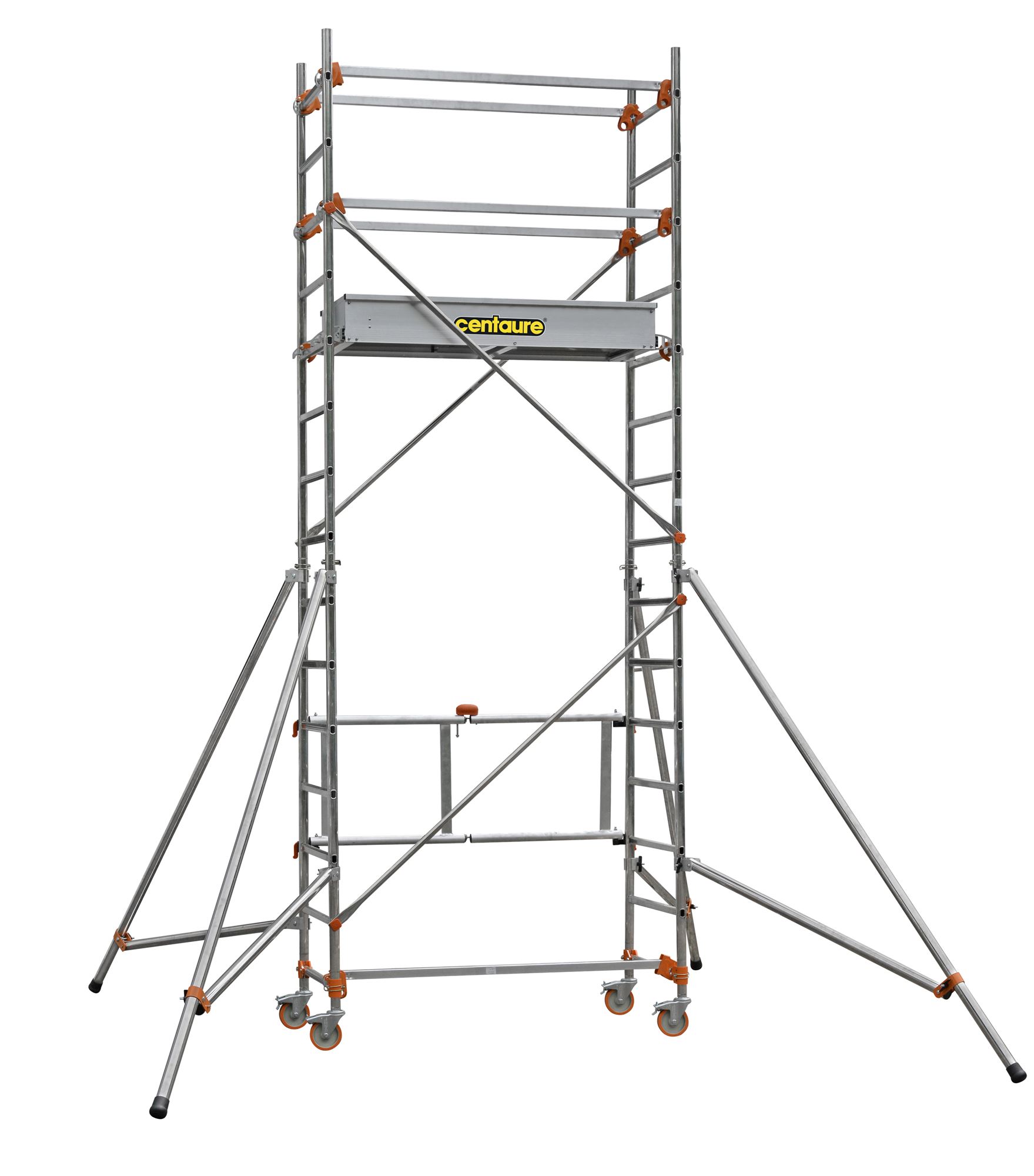

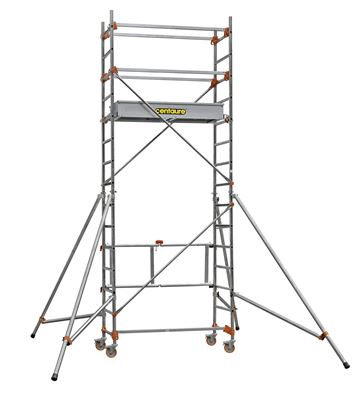

Designed for demanding worksites, it allows for working at height with an expanded work surface, ideal for operations requiring lateral movement or handling of equipment. Its robust aluminum structure ensures excellent durability while remaining maneuverable. The platform with integrated hatch provides safe and easy access. The precise wheel adjustment system, combined with the option of installation on uneven ground, allows for optimal adaptation to all types of terrain. Assembly is simplified thanks to visual markers and complies with current safety requirements.
Technical specifications
Standard: NF EN 1004
Working height: 4.80 m
Floor height: 2.80 m
Floor length: 1.65 m
Usable area: 1.50 x 0.53 m
Dimensions excluding stabilizers: 1.75 x 0.72 m
Number of levels: 1
Weight: 65 kg
Maximum floor load: 157 kg
Aluminum/wood floor with secure hatch
Baseboards: integrated aluminum
Uprights: Ø 40 mm
Stabilizer: unique, all-height
Wheels: precise adjustment + phosphorescent body
Integrated slope installation
Folding base
The advantages of the Centaure STM 165 3 BP scaffolding:
Safe assembly in accordance with NF EN 1004
Robust aluminum construction site structure
Secure floor with trapdoor
Precise wheel adjustment
Enhanced stability with stabilizer
Suitable for uneven and sloping terrain
Visual identification of the parts (orange)
Phosphorescent wheels
Easy to transport thanks to the folding base
Ideal for maintenance and finishing work
The entire Centaure STM 165 BP scaffolding range:
| Reference | Designation | Maximum access height |
| 504732 | STM 165 2 BP | 3.80 m |
| 504733 | STM 165 3 BP | 4.80 m |
| 504734 | STM 165 4 BP | 5.80 m |
| 504735 | STM 165 5 BP | 6.80 m |
