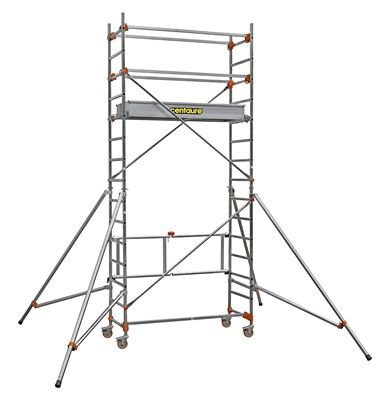

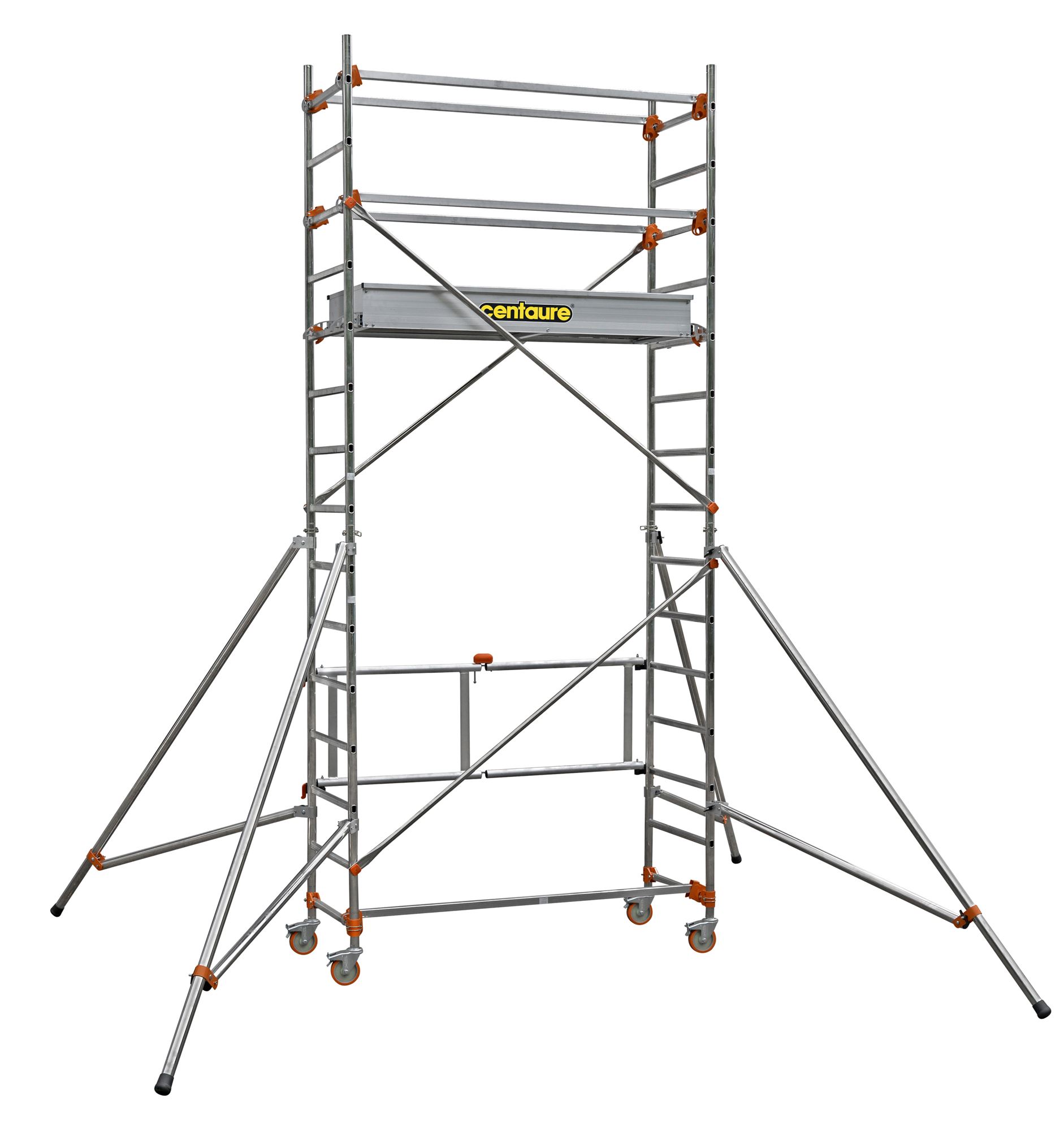

Designed for high-rise, multi-level work, this platform ensures safe operation thanks to its professional-grade assembly. Its aluminum structure provides robustness and maneuverability on the job site. The platform with integrated hatch facilitates access between levels while ensuring safe movement. The precise wheel adjustment system and the stability provided by the structural elements allow for optimal adaptation to uneven ground and sloping terrain. Visual markers simplify assembly and reduce the risk of errors.
Technical specifications
Standard: NF EN 1004
Working height: 6.80 m
Floor height: 4.80 m
Floor length: 1.35 m
Usable area: 1.25 x 0.53 m
Dimensions excluding stabilizers: 1.50 x 0.72 m
Number of levels: 2
Weight: 89 kg
Maximum floor load: 150 kg
Aluminum/wood floor with secure hatch
Baseboards: integrated aluminum
Uprights: Ø 40 mm
Stabilizer: unique for all heights
Wheels: precise adjustment + phosphorescent body
Integrated slope installation
The advantages of the Centaure STS 135 5 BP scaffolding:
2 levels for advanced interventions
Safe assembly in accordance with NF EN 1004
Robust aluminum construction site structure
Secure floor with trapdoor
Precise wheel adjustment
Enhanced stability with a unique stabilizer
Visual identification of the parts (orange)
Phosphorescent wheels
Integrated slope installation
Ideal for heavy maintenance and finishing work
The entire Centaure STS 135 BP scaffolding range:
| Reference | Designation | Maximum access height |
| 504712 | STS 135 2 BP | 3.80 m |
| 504713 | STS 135 3 BP | 4.80 m |
| 504714 | STS 135 4 BP | 5.80 m |
| 504715 | STS 135 5 BP | 6.80 m |
