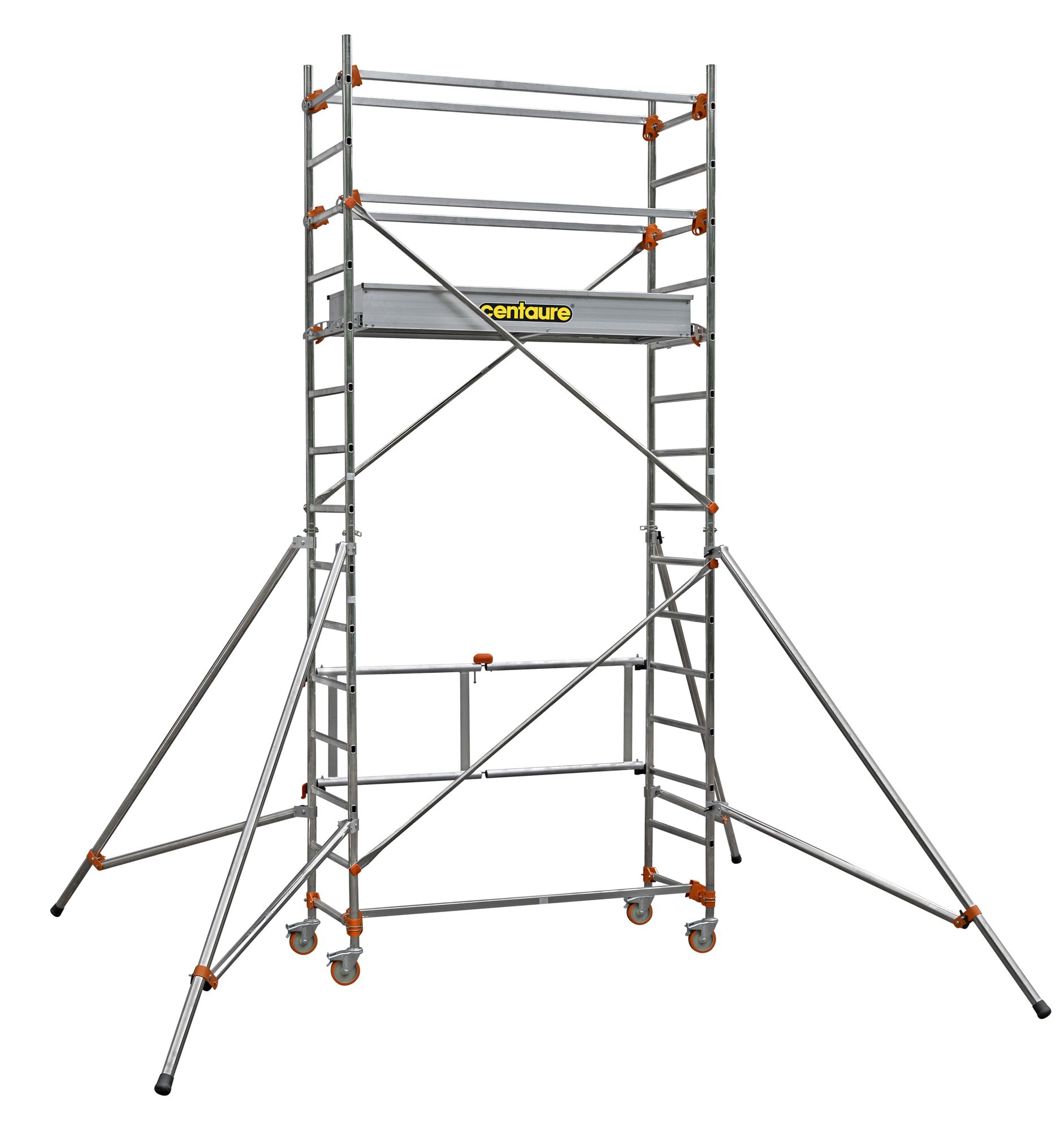

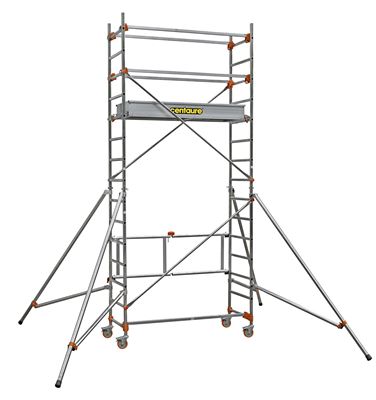

Designed for work at height requiring multiple access levels, this platform ensures safe operation thanks to its design, which meets all safety assembly requirements. Its aluminum structure provides robustness and maneuverability on the job site. The platform with integrated hatch allows for safe access between levels. Stabilizers and a precise wheel adjustment system ensure excellent adaptation to uneven ground and sloping terrain. Visual markers facilitate assembly and reduce installation errors.
Technical specifications
Standard: NF EN 1004
Working height: 5.80 m
Floor height: 3.80 m
Floor length: 1.35 m
Usable area: 1.25 x 0.53 m
Dimensions excluding stabilizers: 1.50 x 0.72 m
Number of levels: 2
Weight: 86 kg
Maximum floor load: 150 kg
Aluminum/wood floor with secure hatch
Baseboards: integrated aluminum
Uprights: Ø 40 mm
Stabilizer: unique, all-height
Wheels: precise adjustment + phosphorescent body
Integrated slope installation
The advantages of the Centaure STS 135 4 BP scaffolding:
2 levels for high-rise work
Safe assembly in accordance with NF EN 1004
Robust aluminum structure for intensive use on construction sites
Secure floor with trapdoor
Precise wheel adjustment
Enhanced stability with a unique stabilizer
Visual identification of the parts (orange)
Phosphorescent wheels for safety
Integrated slope installation
Ideal for maintenance, construction sites and finishing work
The entire Centaure STS 135 BP scaffolding range:
| Reference | Designation | Maximum access height |
| 504712 | STS 135 2 BP | 3.80 m |
| 504713 | STS 135 3 BP | 4.80 m |
| 504714 | STS 135 4 BP | 5.80 m |
| 504715 | STS 135 5 BP | 6.80 m |
