Narrow and tall model of storage cabinet for Lithium batteries. The storage of Lithium batteries, whether for power tools, vacuum cleaners, floor scrubbers, etc., is now becoming an important safety issue given the constant growth of these products.

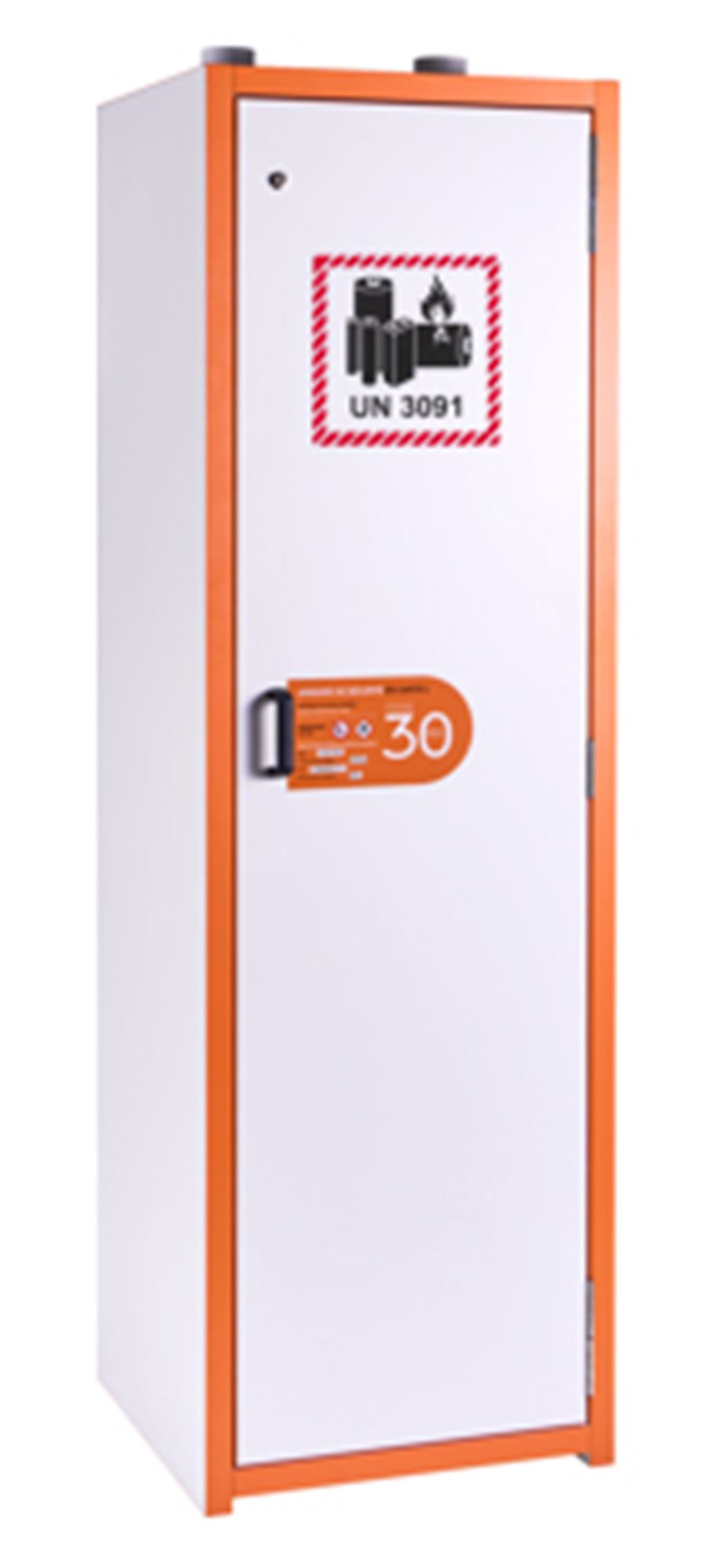

The Voussert T30 LHE safety cabinet is equipment designed for the storage and safe recharging of Lithium type batteries, which we now know are difficult to extinguish in the event of a fire.
Made in France, this protective device offers 30 minutes of fire protection in accordance with the NF EN 14470-1 standard.

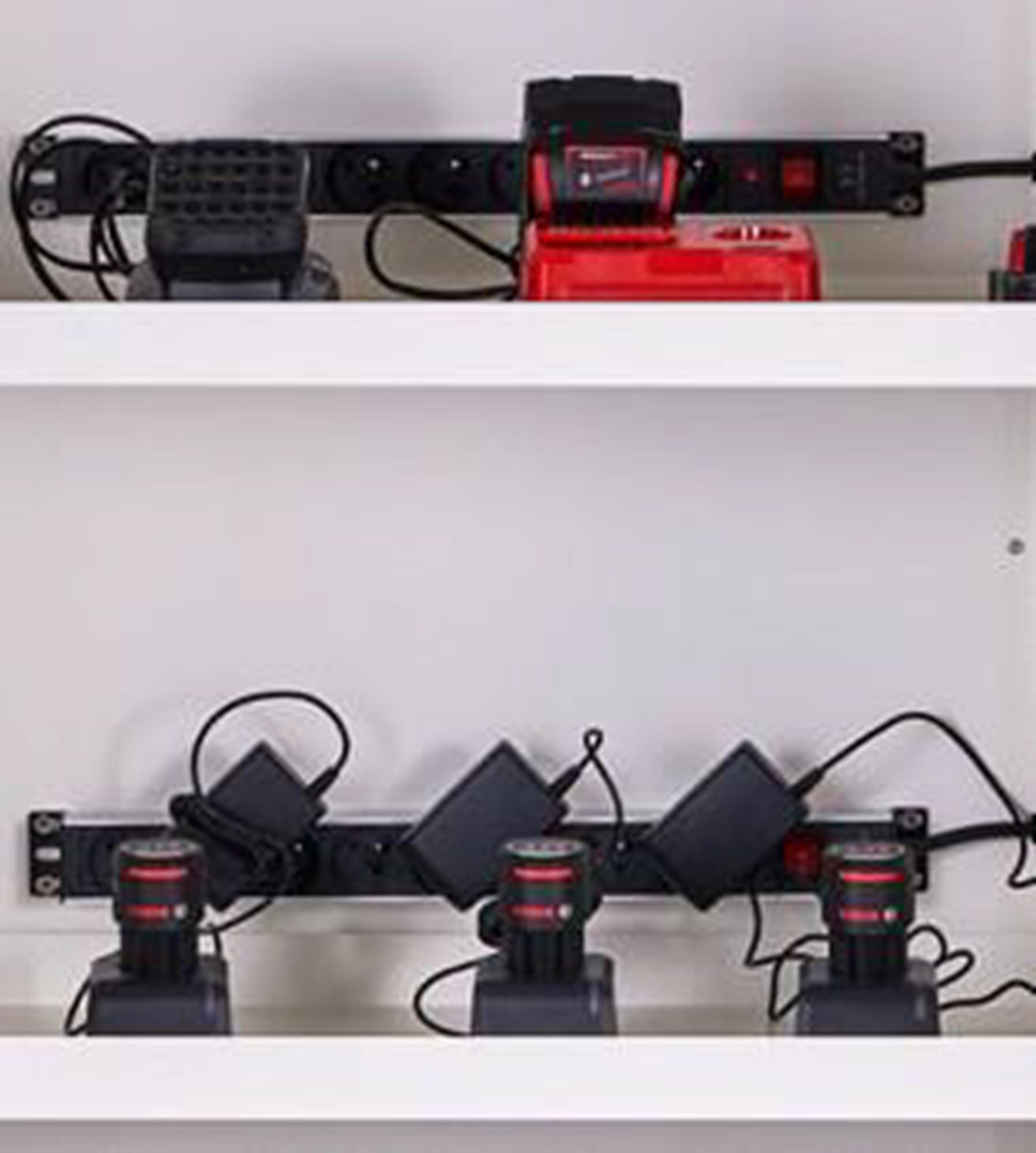

The interior features three adjustable shelves equipped with power strips with circuit breakers to prevent electrical hazards.
To ensure maximum safety, the cabinet includes a smoke detector , an automatic closing system in case of intense heat and a retention tray.
This robust equipment can support a heavy load while facilitating monitoring through remote alert options .
Technical specifications of the T30LHE Lithium battery storage cabinet
• External dimensions: H x W x D: 1950 x 595 x 595 mm
• Internal dimensions: H x W x D: 1655 x 485 x 470 mm
• 3 shelves
• Permissible load evenly distributed per shelf: 45 kg
• 1 containment tray with perforated grating
• Retention tray capacity: 28 L
• Recommended storage volume: 120 L
• Weight: 155 kg
• Electrical capacity: Max 3680W - 230V
• Fire resistance for 30 minutes according to standard NF EN 14470-1
• 3 racks of 8 sockets each, equipped with a circuit breaker for safe charging
• 1 smoke detector with audible alarm, test button (9V battery included)
• 3 shelves adjustable in height at 32 mm increments
• 1 containment tray + perforated steel grating allowing the storage of additional products.
• High-pressure laminate (HPL) construction, white body
• Door equipped with a hold-open mechanism and automatic closing in case of fire thanks to a thermal fuse = 50°C
• Key lock
• Grounding screw
• Ventilation outlets equipped with an automatic fire-stopping device (Ø 80 mm, roof connection)
• Removable base for easy handling
Option for alerts via SMS, emails or calls
The SMS and email alert option for the T30 LHL cabinet is based on a specific fire safety device.
• Dedicated device: This feature is integrated into an optional smoke detector alarm, separate from the standard smoke detector which only emits an audible alarm.
• Communication methods: In the event of smoke detection or an incident, the system is designed to communicate immediately remotely by sending an alert via SMS, emails and phone calls.
• Complementarity: This remote alert system complements the passive safety devices of the cabinet, such as the automatic closing of the doors by thermal fuse from 50°C and the automatic sealing of the ventilation outlets in case of fire.
