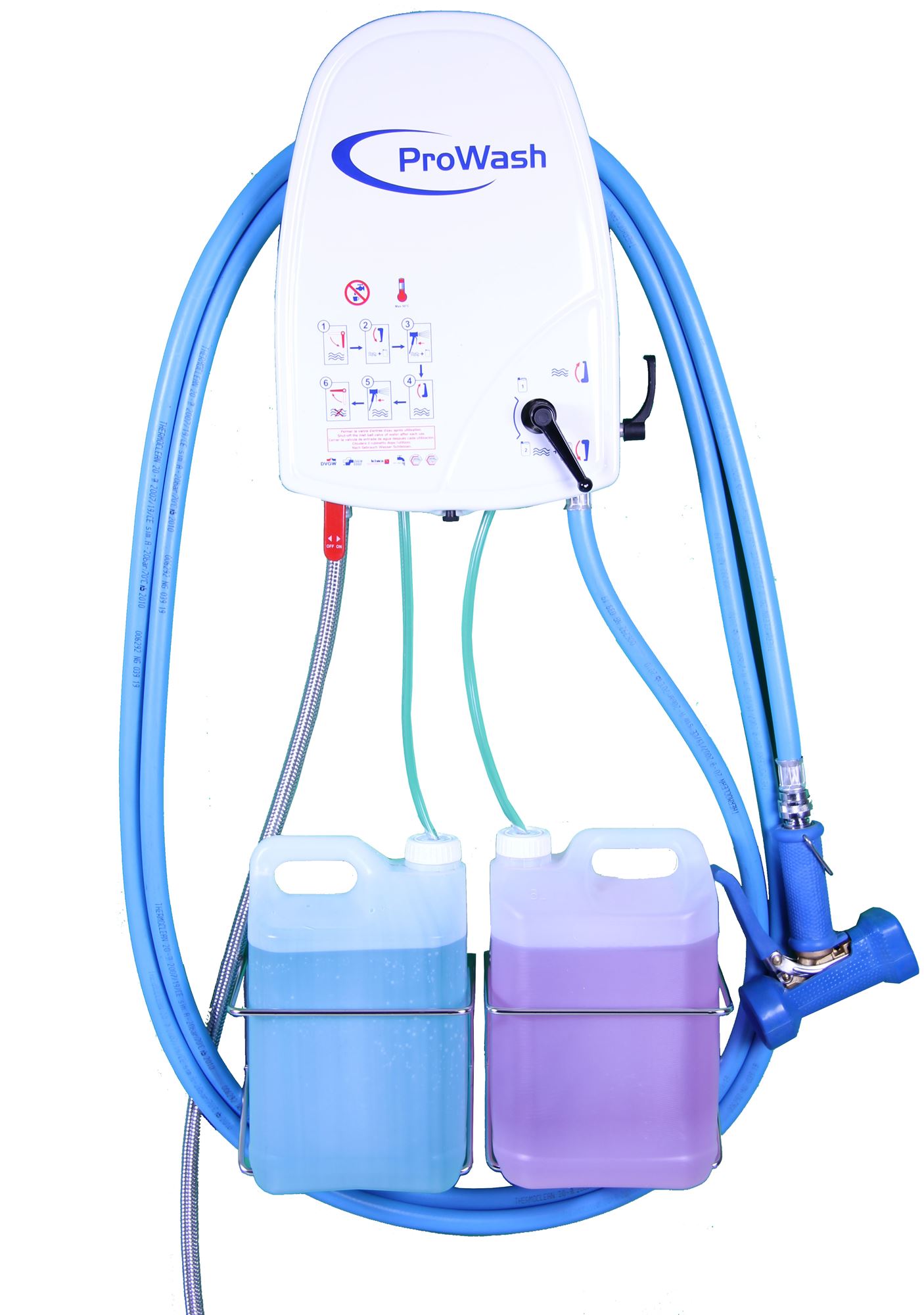

Power washing cleaning hose 15 m 2 products can 5 L

Central cleaning and disinfection for 2 products. Central delivered with a complete connection kit, 2 x 5 liter container supports and an anti-shock gun.
Reinforced blue hose of food quality, resistant 70°c and 20 bars length 15 m.
Excellent resistance to washing products from the valve, the nozzles and the plastic injector.
Filtering anti-pollution valve.
Gun with high shock protection, resistant to 80°C and 25 bars.
Central certified and approved ACS (France) DVGW (Germany) SVGW (Switzerland) BELGAQUA (Belgium) KIWA (Holland).
Wall fixing with three screws.
Connection to standard water supply in 20/27.
Screen printing possible for your establishment (depending on quantity).
1 bag of 15 nozzles is supplied (Ref: LB970103N)

Technical characteristics

8 Non-deformable and easily cleanable PVC shell
8 Washing pipe support integrated into the frame
8 Venturi injector in PP compatible with the majority of chemical products, easily removable
8 Easily removable check valve, ceramic ball, Hastelloy® spring and EPDM O-ring (FPM on request)
8 Stainless steel hose resistant to 110°C - 18 bar
8 Built-in CA type anti-pollution valve (NC double check valve AR on request)
8 Product suction line(s) in Tubclair® hose (Tygon® hose on request)
8 Dilution ratio from 0.5 to 11% Working pressure: 2 to 6 bar Working temperature: 50°C maximum
8 Universal pictograms for use and safety
8 ACSE certified device according to EN1717 directive, if CA valve.

Benefits:
8 Operation without power supply or compressed air
8 Direct connection to a water supply tap
8 Reduction of maintenance costs thanks to quick and tool-free replacement of wearing parts (Venturi injector, AR valve(s))
8 Guarantee of correct dilution and controlled consumption of chemicals
